Product Description:
SMD-90 is our high speed paper cup machine, suitable for both
single and double pe coated paper cup production.
Don't miss out on this opportunity to take your business to the
next level with our paper cup forming machine. Order yours today
and start seeing the benefits of increased efficiency and
productivity.
Technical Parameters:
| Model | SMD-90 |
| Capacity | pcs/min | 100-120 | 90-110 | 80-100 |
| Size Range | mm(max) | Top diameter:90
Bottom Diameter:80
Height:140 | Top diameter:110
Bottom Diameter:80
Height:170 | Top diameter:125
Bottom Diameter:100
Height:170 |
| Suitable Paper Thickness | gsm | 135-450 |
| Sealing Method | | Ultrasonic and hot air system |
| Running Power | KW | 10 | 11 | 12 |
| Air compressor | | 0.4m²/Min. 0.5MPa | 0.5m²/Min. 0.5MPa | 0.6m²/Min. 0.5MPa |
| Net weight | Kgs | 3400 | 3500 | 3600 |
| Machine dimension | mm | 2500*1800*1700 | 2600*1800*1800 | 2700*1800*1800 |
| Collector Dimension | mm | 900*900*1760 | 1000*900*1860 | 1100*900*1860 |
Paper cup machine size production range:
We make mould size according to your special required.
Applications:
1.Adopt Open Cam for the dividing moving, compare with index
gearbox,easy maintenance, stable and reliable, easy replace broken
parts.
2. Main mechanism and moving parts are controlled by quality gears,
which is more efficient and more stronger than chain and axis.
3. Bottom sealing by hot air devices, so that the machine is
efficient.
4.The new machine with higher working speed with extra hot air
system for the side sealing, so side sealing is done by both Hot
air and Ultrasonic.
5. Cup side sealing by ultrasonic, Evergreen which is made in
Taiwan.
6. Cup top curling has two steps, rotary curling and heating
figuration, which makes the curling more stable and with better
appearance (round and smooth).
7. Intelligent Model Using PLC control and touch screen.
8. More efficient and higher performance.
9. With automatic cup delivery system and counter.
10.Intelligent model bottom paper feeding controlled by Servo motor which is high precision and high efficiency to support machine
stable feeding bottom paper .
Support and Services:
The High Speed Paper Cup Machine is a reliable and efficient
product designed to meet your paper cup production needs. Our
technical support and services include:
- Installation and setup of the machine
- Training for operators and maintenance personnel
- Regular maintenance and repair services
- 24/7 technical support for any issues or concerns
- Upgrades and enhancements to improve machine performance
We are committed to providing exceptional support and service to
ensure your High Speed Paper Cup Machine operates at its best and
delivers high-quality paper cups consistently.

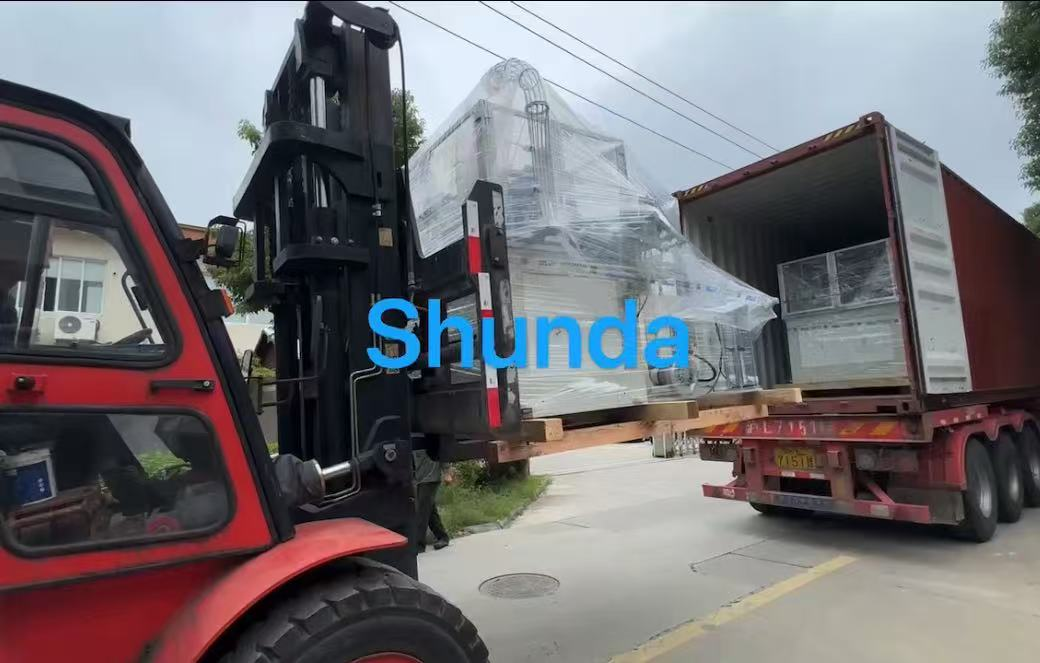

Packing and Shipping:
Product Packaging:
The High Speed Paper Cup Machine will be securely packaged in a
wooden crate to prevent any damage during transportation. The
machine will be wrapped in protective material and all parts will
be secured to ensure safe delivery.
Shipping:
The machine will be shipped via sea or air freight, depending on
the customer's preference. Shipping costs will be calculated based
on the destination and will be added to the final invoice. We will
provide the customer with a tracking number so they can monitor the
progress of their shipment.
Remote guidance, save your time!
1. we provided operation and maintenance guide book.
2. when there is a problem with the machine, please take a video of
the problem and send it to us.
3. we will arrange professionals to help you deal with it through
video or document tutorials.
