Automatic Coffee Paper Cup Cover Manufacuring Machine In Customized Lid Size

Technical Parameters

Model	PLM-60
Speed	50-60 pcs/min
Lid size	diameter: 60-125 mm height: 12-25 mm
Raw material	135-450 gsm
Configuration	ultrasonic
Output	5.5 kw, 220/380v, 50/60 hz
Air compressor	1.2m3/min, 0.4 MPA
Net weight	2000 kgs
Dimension of machine	1700*1300*1500 mm

Product Description

Finished paper lid

Main Features

Open cylindrical cam and gear drive system
- make running more stable
- high precision
- long life for machinery.


Oil Lubrication System
- automatic spray engine oil to gears, chains
- less human maintaince
- oil can be recyced used
- clean and change oil half a year

PLC control Panel
- simple and efficient control panel, mady by MITSUBISHI.
- problems show in PLC display screen, make work more intelligent.

Photoelectric
- panasonic Photoelectricity sensor to track every step.
- auto alarm when paper fan go short
- auto stop when multi paper fans devlier
- auto paper fan track and deliver
...

Lid Body Sealing
- ultrasonic sealing for lid body, ensure machine can running high speed for single and double pe coated paper.

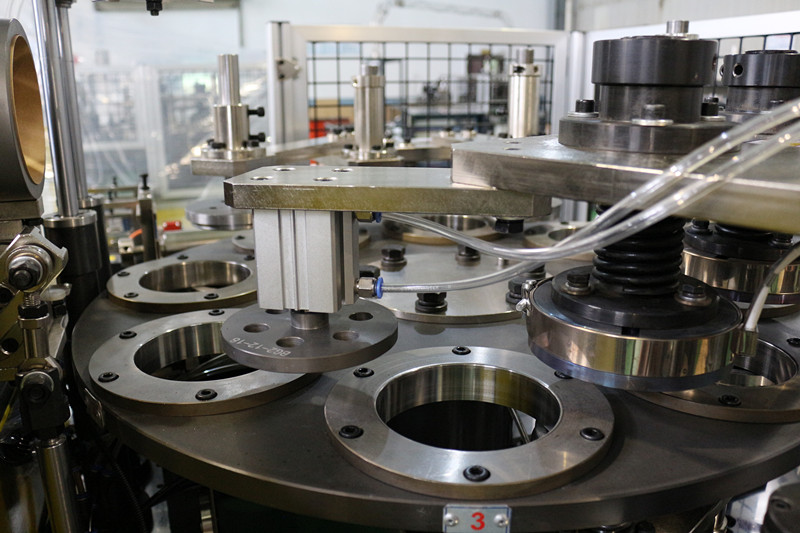

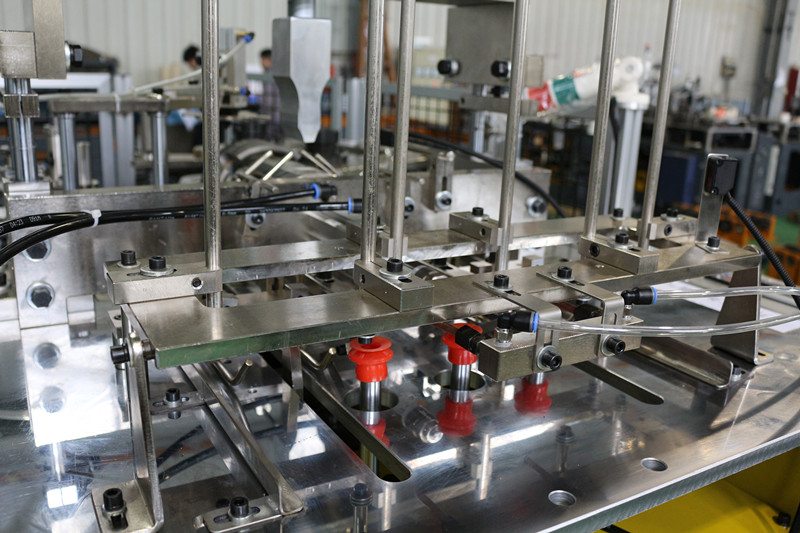

Detailed Images

FAQ

About Us:
Haining Chengda Paper Cup Machinery CO.,Ltd is established in year 1998,as Chinese earliest
paper cup machine manufacturer--design,research,manufacture,sell and serve , we have developed,
matured and specialized in machine types as below,

--paper cup machine SMD-90 150 PCS/MIN IN MAX

--paper bowl machine SMD-80B 70-80cups/min

--double wall paper cup machine SMD-80A 70-80cups/min

With decade years of technology accumulation,advanced manufacturing skills and thoughtful after-sale
services, Chengda(Shunda) Paper Cup Machinery CO., Ltd has self-supported import and export right
and goes though CCC and CNAS certificates,also get CE and ISO9001 certified.
