Disaposable Round Paper Bowl Container Cup Making Forming Machine
Technical Datas
| Model | SMD-80B normal size | SMD-80B big size |
| Speed | 70-80 pcs/min | 50-60 pcs/min |
| Cup size | Top diameter: 150mm(max) | Top diameter: 200mm(max) |
| Bottom diameter: 120mm(max) | Bottom diameter: 180mm(max) |
| Height: 120mm(max) | Height: 150mm(max) |
| Raw material | 135-450gsm PE/PLA coated paper | 135-450gsm PE/PLA coated paper |
| Configuration | Ultrasonic & hot air system | Ultrasonic & hot air system |
| Output | 380V/220V,60HZ/50HZ, 14KW | 380V/220V,60HZ/50HZ, 18KW |
| Air compressor | 0.4M3/min 0.5MPA | 0.6M3/min 0.5MPA |
| Net weight | 3.5tons | 4.0tons |
| Dimension of machine | 2500x1800x1700mm | 3000x2000x1700mm |
| Dimension of cup collector | 900x900x1760mm | 1000x1000x1760mm |
SMD-80B automatic middle speed paper container forming machine is
designed to make big size paper bowl and bucket for soup, popcorn
and fried food.
1.Longitudinal axis gear drive.Cylindrical type barrel shape
indexing cam.This design optimize machine internal layout,ensure
the machine drive precision,synchronous performance high,so that
can make the each part of machine coordination,to prevent collision
each other of machine part.
2.Switzerland leister heating device is equipped for cup body and
bottom sealing,bottom are heated at first before they are
feeding,thus improving heating effect and helping guarantee
knurling.
3.Whole machine is box type structures design,filling oil by spray
lubrication system,that can reduce damage,cooling effective.so that
the machine can run fast.
4.The first curling order use the internal expanding rotational
molding, in favour of improving the paper forming intensity. The
second curing order use heat setting,the mouth of curling not only
appear very nice but also keep dimension stability.

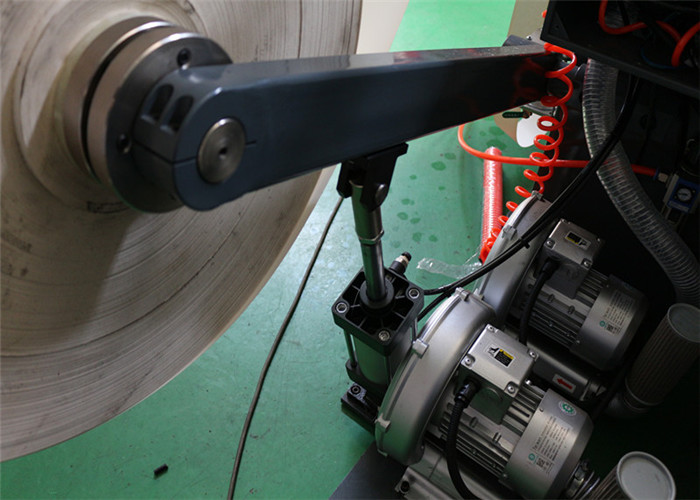

Details Show:
Finished Products Show:
About us:
Haining Chengda Machinery Co.,LTd always abides by the business
strategy of "high-quality
products & reasonable price", the service concept of "showing
respect to you & trying my best",
and the professional spirit of ’’honesty, innovation, enthusiasm,
sureness" to provide customers
the best products and services. With a history of over 20 years, ship to more than 100 countries.
Trade Show
Maintaince Notice:
1. Don't be in an environment of corrosive gas or smoke
2. Don't in the product may be splashed water, oil or use
chemicals.
3. Please with stable voltage source power supply
4. make sure the power cord in good condition, so as not to cause
fire or shock damage.
5. Instrument after electrify please don't touch input and output
terminals, lest cause electric shock or instrument malfunction.
6. if you open the instrument shell, there may be a shock
hazard.Because of power, has its internal capacitance charging, can
keep certain voltage.
FAQ
1. Q: Is your company a factory or trading company?
A: Our company is a factory.
2. Q:Where is your factory located? How can I visit there?
A:Our factory is located in haining City, Zhejiang Province, China,
about 1.5 hours by car from Shanghai. All our clients, from home or
abroad, are warmly welcome to visit our company !
3. Q: How does your factory do regarding quality control?
A: Quality is priority. Shunda people always attach great
importance to quality controlling from the very beginning to the
very end:
1).All raw material we used are environmental-friendly;
2).Skilful workers care every details in handling the producing and
packing processes;
3).Quality Control Department specially responsible for quality
checking in each process.
4.What information should i let you know if i want to get a
quotation?
--Quantity
--The detailed size (top diameter,bottom diameter,and height)
--The paper thickness
QC team:
A QC team with more than 10 professional and technical personnel.
To ensure 100% products checking.
Material: Strictly control of material using, meet international
requested standards.
Semi-finished products inspection: Product inspection before 100%
finished.
Production line test: With work team or data engineer who will
inspect machines and lines at fixed period.
Finished Product Inspection: Quality and property test before
products are packed and loaded
