High Speed Automatic Intelligent Double Ripple Corrugated Wall
Paper Forming Wraping Machine Without Glue
Machine specifications:
| Model | SMD-80A cup size | SMD-80A bowl size |
| Speed | 80-100pcs/min | 70-90pcs/min |
| Cup size | Top diameter: 100mm(max) | Top diameter: 150mm(max) |
| Bottom diameter: 80mm(max) | Bottom diameter: 80mm(max) |
| Height: 110mm(max) | Height: 140mm(max) |
| Raw material | 135-450gsm paper | 135-450gsm paper |
| Configuration | Ultrasonic | Ultrasonic |
| Output | 9KW,380V/220V,60Hz/50Hz | 10KW,380V/220V,60Hz/50Hz |
| Air compressor | 0.4 M3/min 0.5MPA | 0.5 M3/min 0.5MPA |
| Net weight | 3.0 tons | 3.2 tons |
| Dimension of machine | 2500x1800x1700mm | 2700x1800x1800mm |
| Dimension of cup collector | 900x900x1760mm | 1000x900x1860mm |
Mechanical Quality Guarantee
1.Mechanical parts are guaranteed for 3 years, electrical parts are
guaranteed for 1 year.
2.All parts on forming table are easy to access for maintenance.
3.All parts under forming table are lubricated by oil bath. Oil
should be changed every 4-6 months with specified oil.
Production Efficiency
1.Production output up to 39,000 cups per shift (8 hours), up to
3.5 million cups per month (3 shifts);
2.Percentage of pass is higher than 99% under normal production;
3.One operator can handle several machines at the same time.

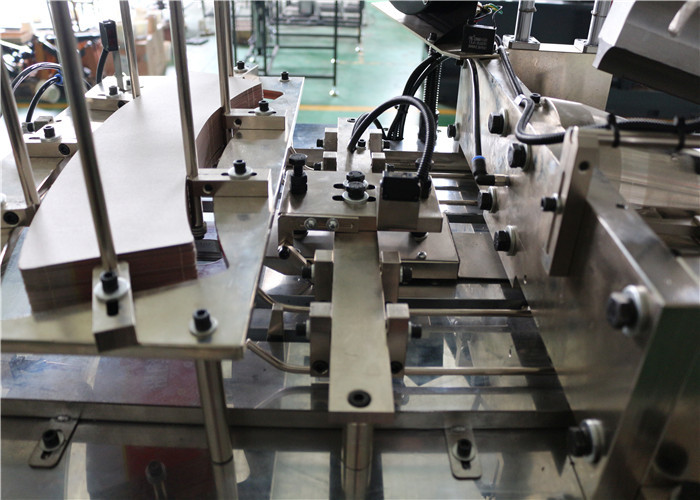

Details:
Finished Products Show:
About us:

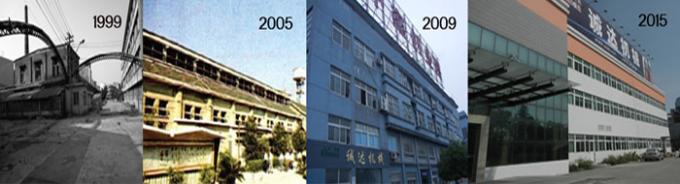

Established in 1998, Haining Chengda Machinery Co., Ltd. is a
professional paper container equipment manufacturer. We have
R&D,production and sales department .After 20 years of hard
working, our company has a strong technical team and a research and
development center cooperate with Taiwan's senior paper container
molding technology team and obtained national patents such as a
straight tube machine. Our company has modern assembly workshops,
precision parts processing workshops, training centers, QA centers
and other infrastructure. Our company has CE, ISO9001 certification
system and national import and export rights.
In recent years, based on the characteristics of Chinese paper and
the development trend of paper containers home and abroad, we have
developed a batch of international synchronization technology unit
of the intelligent molding Machine with automatic detection systems
and remote connection system for paper cup machine, paper tube
machine, paper lid machine,doner box machine and etc.
We lead the market by advanced technology and excellent product
quality.In the future, we will continue to feed customers' needs,
be brave in innovation, use perfect pre-sales and after-sales
service systems to serve customers, and constantly explore the
development of paper container molding machines. The new trend is
to provide customers with total industry-wide solutions with
competitive products.
Trade Show
Our Advantages:
Quality assurance both for our products and service for
after-sales.
Favorable price.
Great variety of products.
Attractive design.
Environment Friendly Technology
OEM and ODM service provided.
QC team:
A QC team with more than 10 professional and technical personnel.
To ensure 100% products checking.
Material: Strictly control of material using, meet international
requested standards.
Semi-finished products inspection: Product inspection before 100%
finished.
Production line test: With work team or data engineer who will
inspect machines and lines at fixed period.
Finished Product Inspection: Quality and property test before
products are packed and loaded.
Maintaince Attention:
1. Don't be in an environment of corrosive gas or smoke
2. Don't in the product may be splashed water, oil or use
chemicals.
3. Please with stable voltage source power supply
4. make sure the power cord in good condition, so as not to cause
fire or shock damage.
5. Instrument after electrify please don't touch input and output
terminals, lest cause electric shock or instrument malfunction.
6. if you open the instrument shell, there may be a shock
hazard.Because of power, has its internal capacitance charging, can
keep certain voltage.
