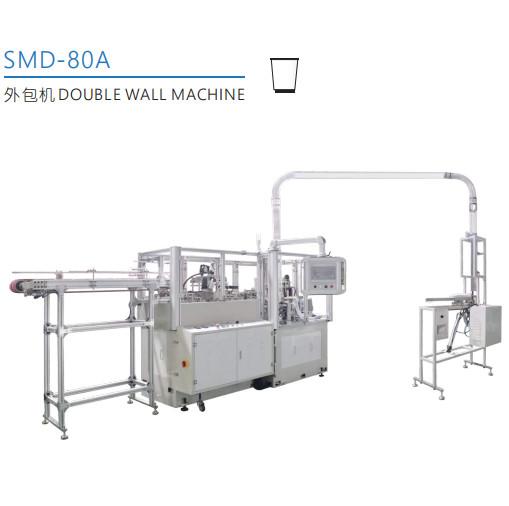

Double Wall 2 Layers Insulation Disposable Coffee Hot Paper Cup
Making Machine
Datas:
| Model | SMD-80A cup size | SMD-80A bowl size |
| Speed | 80-100pcs/min | 70-90pcs/min |
| Cup size | Top diameter: 100mm(max) | Top diameter: 150mm(max) |
| Bottom diameter: 80mm(max) | Bottom diameter: 80mm(max) |
| Height: 110mm(max) | Height: 140mm(max) |
| Raw material | 135-450gsm paper | 135-450gsm paper |
| Configuration | Ultrasonic | Ultrasonic |
| Output | 9KW,380V/220V,60Hz/50Hz | 10KW,380V/220V,60Hz/50Hz |
| Air compressor | 0.4 M3/min 0.5MPA | 0.5 M3/min 0.5MPA |
| Net weight | 3.0 tons | 3.2 tons |
| Dimension of machine | 2500x1800x1700mm | 2700x1800x1800mm |
| Dimension of cup collector | 900x900x1760mm | 1000x900x1860mm |
SMD-80A intelligent paper cup sleeve / jacket machine adopts
open-type, intermittent division design, gear drive, longitudinal
axis design, so they can reasonably distribute each part function.
The whole machine adopts spray lubrication.
PLC system controls the whole cups forming process.
By adopting photoelectric failure-detecting system and servo
control feeding, our machine’s reliable performance is guaranteed,
thus offering a rapid and stable operation.
The maximum speed can reach 100pcs/min, and it is suit for produce
8-44OZ cup jacket forming which is widely used in milk-tea
cup,coffee cup, ripple cups, noodle bowl and so on.
Mechanical Quality Guarantee
1.Mechanical parts are guaranteed for 3 years, electrical parts are
guaranteed for 1 year.
2.All parts on forming table are easy to access for maintenance.
3.All parts under forming table are lubricated by oil bath. Oil
should be changed every 4-6 months with specified oil.
Production Efficiency
1.Production output up to 39,000 cups per shift (8 hours), up to
3.5 million cups per month (3 shifts);
2.Percentage of pass is higher than 99% under normal production;
3.One operator can handle several machines at the same time.
Details:
About us:
Haining Chengda Machinery Co.,LTd always abides by the business
strategy of "high-quality
products & reasonable price", the service concept of "showing
respect to you & trying my best",
and the professional spirit of ’’honesty, innovation, enthusiasm,
sureness" to provide customers
the best products and services. With a history of over 20 years, ship to more than 100 countries.
Trade Show
QC team:
A QC team with more than 10 professional and technical personnel.
To ensure 100% products checking.
Material: Strictly control of material using, meet international
requested standards.
Semi-finished products inspection: Product inspection before 100%
finished.
Production line test: With work team or data engineer who will
inspect machines and lines at fixed period.
Finished Product Inspection: Quality and property test before
products are packed and loaded.
Maintaince Notice:
1. Don't be in an environment of corrosive gas or smoke
2. Don't in the product may be splashed water, oil or use
chemicals.
3. Please with stable voltage source power supply
4. make sure the power cord in good condition, so as not to cause
fire or shock damage.
5. Instrument after electrify please don't touch input and output
terminals, lest cause electric shock or instrument malfunction.
6. if you open the instrument shell, there may be a shock
hazard.Because of power, has its internal capacitance charging, can
keep certain voltage.
