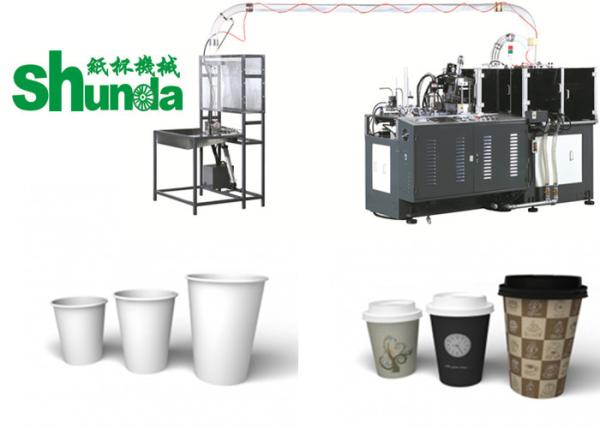

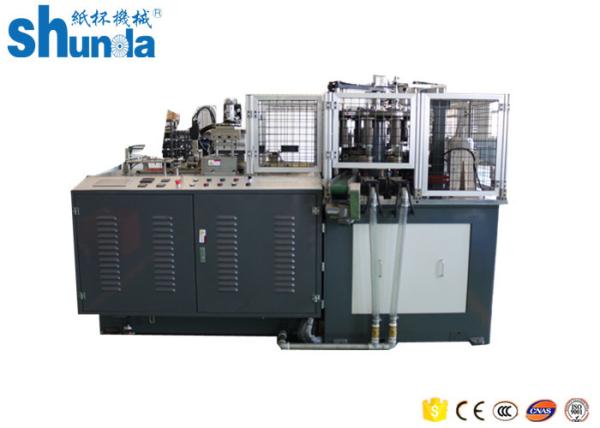

Details: paper cup machine

Double Open cylindrical cam:

Our factory is the first one using two cam systems, this design more costly, but can let the top curling and bottom knurling more accuracy, stable and low noise. Cam adpots high strength Japan-SKD11 with quenching treatment,resistant to wear. Before set up on the machine, our factory will test running one week, to ensure each bearing at the suitable station.

x

Inspection system(Option):

Unique design. Our factory set up on final turn station,more stable than set up on flying tube. Do not need to buy extra inspection machine, less factory space needed. Inspection accuracy can be set up by self.

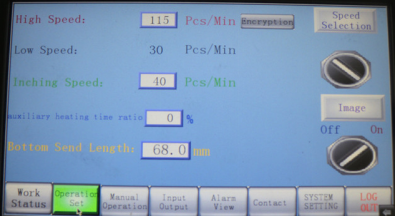

PLC control system: controlled by simple and efficient PLC system.

Oil lubracation recycling system :

Open cylindrical cam: Our factory is the first one using two cam systems, this design more costly,
but can let the top curling and bottom knurling more accuracy, stable and low noise.
Cam adpots high strength Japan-SKD11 with quenching treatment,resistant to wear. Before set up on
the machine, our factory will test running one week, to ensure each bearing at the suitable station.

Advantages:

1. It has 2 sets of original imported hot air system Leister guarantee the stability of heating.
2. Ultrasonic seal the paper cup body,can produce both single and double PE coated paper.
3. Panasonic photoelectricity checking the every part and report.
4. Open cylindrical can divide locating,heigh precision.
5. Automatically Oil lubrication system .
6. Servo motor control the gap of the bottom-paper within 0.1mm.

Finished paper cups:
