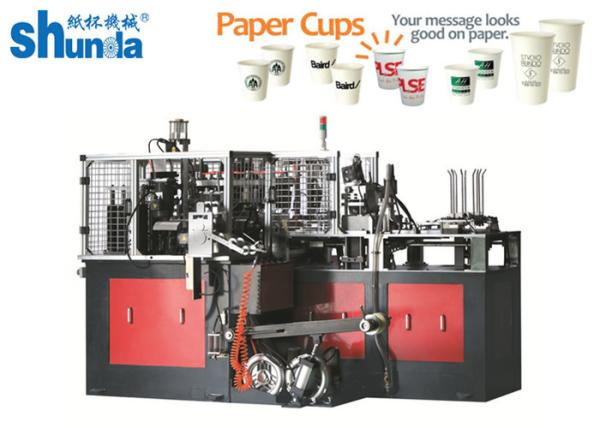

145 pcs/Min Hot Air Sealing High Speed Paper Cup / Bowl Machine For
Cold Drink
Specifications:
MODEL | SMD-90 |
SPEED | 100-145 PCS/MIN |
CUP SIZE RANGE | Top Diameter: 60MM(Min)- 100 MM(Max)
Bottom Diameter: 40MM(Min)-80MM(Max)
Height: 50MM(Min)-150MM(Max) |
MATERIAL | 135-450GRAM |
CONFIGURATION | ULTRASONIC&HOT AIR |
OUTPUT | 380V/220V,60HZ |
AIR COMPRESSOR | 0.5 M³/Min |
NET WEIGHT | 4.5 TONS |
MACHINE SIZE | 2500 ×1800 ×1700 MM |
COUNTER SIZE | 900 ×900 ×1760 MM |
Description:
SMD-90 SHUNDA Machinery has successfully developed its own
medium-speed automatic paper cup forming machine with complete
intellectual property right to meet the increasing demands for
paper cups (bowls) in the market. This equipment is an automatic
multi-position machine that can finish the whole process of paper
cup (bowl) making from automatic paper conveying, connecting,
bottom making, heating, boarder knurling, oiling, rimming and
collective packaging etc. With compact structure and strict action
control, the machine specialized in production of paper cups
(bowls) or conical food containers is precise, easy to operate,
Intelligent, safe, stable and dependable.
Applications:
Produce for Coffee Cup, Tea Cup, Juice Cup, Ice Cream Cup etc
Whole Process
Maintaince Notice
1. Don't be in an environment of corrosive gas or smoke
2. Don't in the product may be splashed water, oil or use
chemicals.
3. Please with stable voltage source power supply
4. make sure the power cord in good condition, so as not to cause
fire or shock damage.
5. Instrument after electrify please don't touch input and output
terminals, lest cause electric shock or instrument malfunction.
6. if you open the instrument shell, there may be a shock
hazard.Because of power, has its internal capacitance charging, can
keep certain voltage.
After Service
1. warranty:3 years
2. the guide booklet will be sent with machine to guide the
installation process works,adjust the whole
machine,production,avoide or solve the problem which the buyer will
face.
3. we will adjust the machine well for one week before the
delivery,ensure the machine has the perfect performance.
4. we can dispatch technologists to buyer's factory,guiding
installation,ajustment for a period,the buyer incharge of the
salary,traffic fee,boarding and lodging,communication and Daily
salary.
5. we supply the free training of buyer,the training won't stop
until the buyer control the whole leson!the cost of air
ticket,boarding and lodging should provided by buyer.
6. we supply the consumable spare parts for free for 3 year use.
