Paper Bowl Making Machine,digital high speed paper bowl making machine 50ml to 900ml


Specification

Description

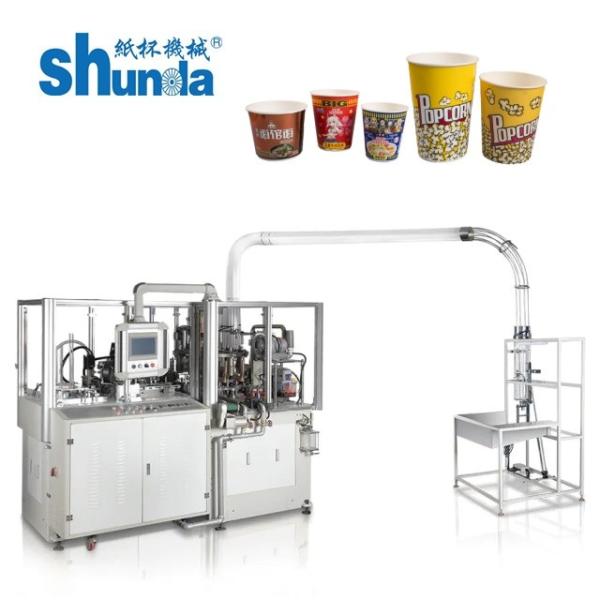

SMD-80B is a paper bowl machine,which is designed By HAINING CHENGDA MACHINERY CO.,LTD,It can produce both single and Double PE coated paper Bowls. As technology development, it will take place of the formally machines in market day by day.

1. Hi-tech Cylindrical indexing gear
2. Hot air system and protect system: 2 set of hot air systems can decrease the rate of leakage. Our factory using the whole set of Leister hot air system with protection system. And our system sets up on the fixed plate, do not moving during production. Almost impossible to damage. Also the only one have the protect system that hot parts will go down, keep the distance with paper cup and cup mould when the machine stop.

3. Mitsubishi PLC tracking and Touch screen Controlling cabinet

4. Servo motor: Service for bottom paper feeding. The feature of runs more stable and accuracy, reduce the waste of bottom paper. Servo motor is made in Japan by MITSUBISHI.


5. Automatic lubrication system

6. Infinitely variable drive
7. Safety Door opening protection device

8. Photoelectric tracking and detecting every step

9. Automatic collecting and counting cups

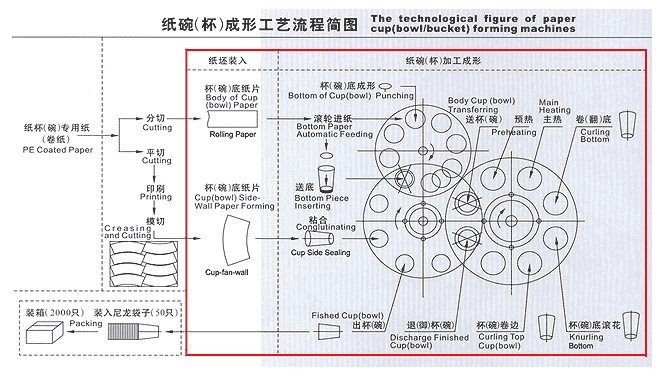

Process of paper bowl making machine



Bowl size range

top diameter 9-15cm
bottom diameter 6-11.5cm
height 5-13.5cm


FAQ

1. Q: Is your company a factory or trading company?
A: Our company is a factory since year 1998.
2. Q:Where is your factory located? How can I visit there?
A: Our factory is located in haining City, Zhejiang Province, China, about 80 minutes by car from Shanghai airport.




After Service
Warranty:3 years--all machines adjusted to proper working condition before shipping.

Instruction manual and engneer drawings will be sent together with machine.

Oversea installation service is available,however reasonable flight cost,accommodation and daily salary is requested.


Package

PP film to be waterproof,then wooden plate,and fixed into wooden case.

We have R&D,production and sales department .After 20 years of hard working, our company has a strong technical team and a research and development center cooperate with Taiwan's senior paper container molding technology team and obtained national patents such as a straight tube machine. Our company has modern assembly workshops, precision parts processing workshops, training centers, QA centers and other infrastructure.


In recent years, based on the characteristics of Chinese paper and the development trend of paper containers home and abroad, we have developed a batch of international synchronization technology unit of the intelligent molding Machine with automatic detection systems and remote connection system for paper cup machine, paper tube machine, paper lid machine,doner box machine and etc.


We lead the market by advanced technology and excellent product quality.In the future, we will continue to feed customers' needs, be brave in innovation, use perfect pre-sales and after-sales service systems to serve customers, and constantly explore the development of paper container molding machines. The new trend is to provide customers with total industry-wide solutions with competitive products.
