Introduction:

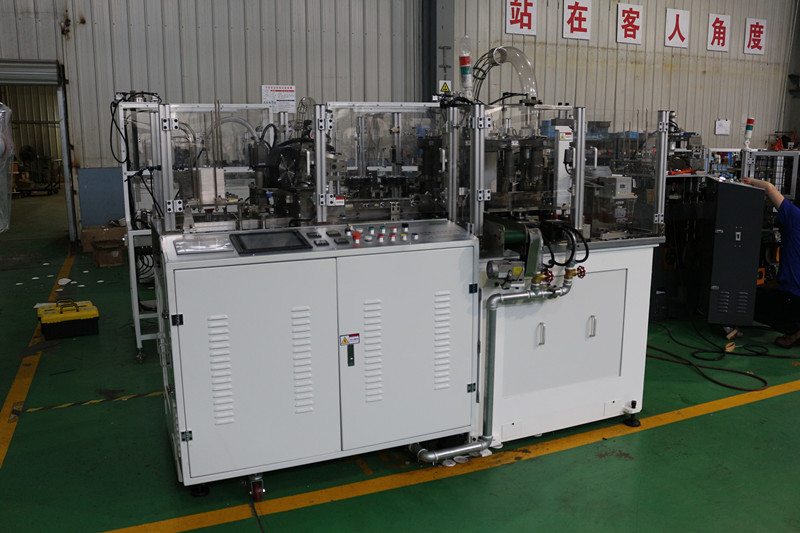

Single PE coated paper cup machine is the automatic environmental
machine with multi-running positions. This machine runs a whole
procedure of paper-feeding, cup-fan-wall sealing, oiling,
bottom-punching, heating, rolling, rimming, rounding and tripping.
It is an idea equipment of producing drinking cup, ice-cream cup
and other food cone-shaping containers. This type paper cup machine
mainly used to making one side PE coated paper cups from 4oz to
46oz.
Technical Parameters:
| Model | SMD-90 |
| Speed | 100-120 pcs/min |
| Cup size | Top Diameter: 60mm(min)-125mm(max) |
| Bottom Diameter: 45mm(min)-100mm(max) |
| Height: 60mm(min)-170mm(max) |
| Raw material | 135-450 GRAM |
| Configuration | ULTRASONIC & HOT AIR SYSTEM |
| Output | 12KW,380V/220V,60HZ/50HZ |
| Air compressor | 0.4 M³/Min 0.5MPA |
| Net weight | 3.4 TONS |
| Dimension of machine | 2500×1800 ×1700 MM |
| Dimension of cup collector | 900 ×900 ×1760 MM |
Characteristics:
Full automatic
Automatic control adopts optically controlled non-contact switch
Micro-controlled transducer
Step-less speed adjustment
Paper Cup-fan-wall body sealed by heater
Paper Cup bottom sealed by heater.
Easy changing molds produce different sizes paper cups
Easy operating by operator (one operator is enough)
Easy maintenance with minimum cost
Cheap operating cost and low investment
Machine Running Video
https://youtu.be/9298j9xTeGQ
Paper cup making process
FAQ
1. Q: Is your company a factory or trading company?
A: Our company is a factory since 1998
2. Q:Where is your factory located? How can I visit there?
A:Our factory is located in haining City, Zhejiang Province, China,
about 1.5 hours by car from Shanghai .All our clients, from home or
abroad, are warmly welcome to visit our company !
3. Q:How does your factory do regarding quality control?
A:Quality is priority. Shunda people always attach great importance
to quality controlling from the very beginning to the very end:
1).All raw material we used are environmental-friendly; 2).Skilful
workers care every details in handling the producing and packing
processes; 3).Quality Control Department specially responsible for
quality checking in each process.
