    Tea Paper Cup Making Machine With Inspection System/Inspection Machine

    Ask Lasest Price
    Brand Name : Shunda
    Model Number : SMD-90
    Certification : CE
    Price :
    Supply Ability : 10 sets/month
    Delivery Time : 35-45 working days after confirmed cup size and received deposit
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    • Product Details
    • Company Profile

    Tea Paper Cup Making Machine With Inspection System/Inspection Machine

    Tea Paper Cup Making Machine With Inspection System/Inspection Machine


    Product Description

    Technical date:

    MODELSMD-90 PAPER CUP MACHINE
    Speed100-120 PCS/MIN
    Cup size Range4-16oz
    MaterialSingle and Double PE coated paper
    Paper request Gram135-450GSM(single and double PE coated paper)
    Heating systemHot air system (from Switzerland)
    Output380V/220V 12 KW,50HZ, Three Phase four wire
    Air compressor0.4 M³/Min 0.5MPA
    Net weight3.4 TONS
    Machinery Size2500 ×1800 ×1700 MM
    Counter Size900 ×900 ×1760 MM

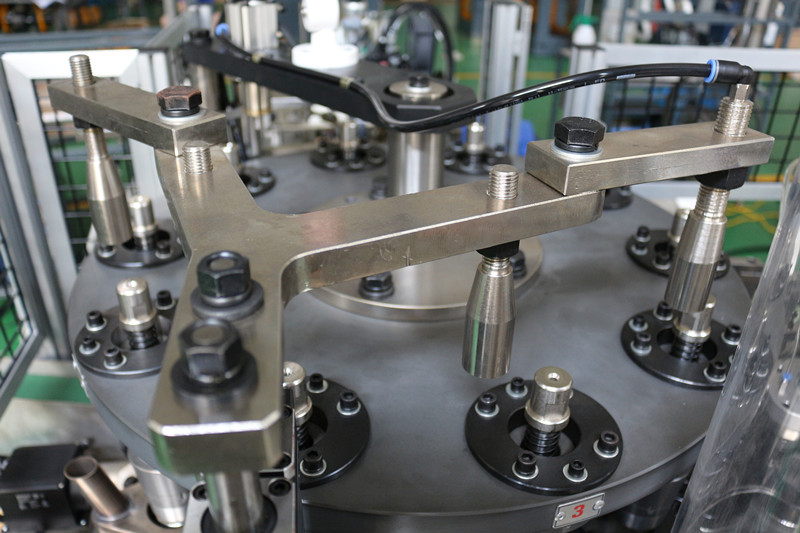

    Machine detail


    Open cylindrical cam: Our factory is the first one using two cam systems, this design more costly, but can let the top curling and bottom knurling more accuracy, stable and low noise. Cam adpots high strength Japan-SKD11 with quenching treatment,resistant to wear. Before set up on the machine, our factory will test running one week, to ensure each bearing at the suitable station.



    Hot air system and protect system: 2 set of hot air systems can decrease the rate of leakage. Our factory using the whole set of Leister hot air system with protection system. And our system sets up on the fixed plate, do not moving during production. Almost impossible to damage. Also the only one have the protect system that hot parts will go down, keep the distance with paper cup and cup mould when the machine stop.



    Air controller: our factory also the one have air controller,and the only one set up two air blowers on the machine. Less air consumption required and avoid the cup fall off during production.




    Operation


    About the mathod of the operation,you just need connect the power supply,cause we will try running before the shipment. 35-45 working days after confirmed cup size and received deposit


    About mould


    Usually, one mold per one machine. Becuase changing mold is not easy, even for our technologists. And when you changed the mold, the machine need to running-in, it will reduce the operation life of machine. If you insist, you'd better come to our factory to learn how to change the mold, how to adjust the machine, how to maintain the machine...



    Products Certifications


    Our company was found in 1998. Our machine can work continuing for 24 hours ,we had won praise in USA,Europe,North Africa,Asia, Oceania and so on. Also we have CE certification, ISO:9000.FDA,SGS,CIQ,QC......

    After-sale


    1.The CD and service&support guide booklet will be sent with machine to guide the installation process works,adjust the whole machine,production,avoid or solve the problem which the buyer will face.


    2.Test run of the machine&training: We will adjust the machine well for one week before the delivery, ensure the machine has the perfect performance! We can dispatch technologists to buyer’s factory, guiding installation, adjustment for a period, the

    buyer incharge of the salary, traffic fee,boarding and lodging, communication.


    3.Training of buyer in China: We supply the free training of buyer,the training won’t stop until the buyer control the whole lesson! The cost of air ticket,boarding and lodging should provided by buyer


    4.We supply the consumable spare parts for free for two years use
