Fully Automatic Paper Cup Machine Hot Drink Cup Paper Cup Making
Machine
Specifications:
| Model | SMD-90 | | | |
| Capacity | pcs/min | 100-120 | 90-110 | 80-100 |
| Size Range | mm(max) | Top diameter:90
Bottom Diameter:80
Height:140 | Top diameter:110
Bottom Diameter:80
Height:170 | Top diameter:125
Bottom Diameter:100
Height:170 |
| Suitable Paper Thickness | gsm | 135-450 | | |
| Sealing Method | | Ultrasonic and hot air system | | |
| Running Power | KW | 10 | 11 | 12 |
| Air compressor | | 0.4m²/Min. 0.5MPa | 0.5m²/Min. 0.5MPa | 0.6m²/Min. 0.5MPa |
| Net weight | Kgs | 3400 | 3500 | 3600 |
| Machine dimension | mm | 2500*1800*1700 | 2600*1800*1800 | 2700*1800*1800 |
| Collector Dimension | mm | 900*900*1760 | 1000*900*1860 | 1100*900*1860 |
Description:
SMD-90 paper cup making machine is an improved and upgraded machine
of the low speed types. In order to realize optimal functions and
performance, it utilizes open cam design, interrupted division,
gear drive and longigudinal axis structure.
It could produce 3-46 oz cold and hot drink paper cup, such as
coffee cup ,tea cup , water cups etc .especially it is popular for
making small coffee cup 3oz for Algeria market.

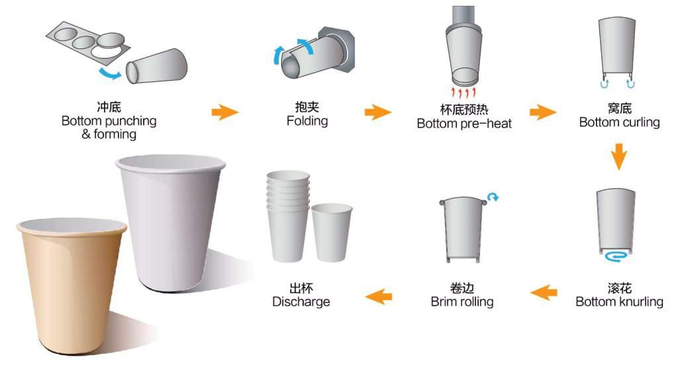

The processs of paper cup making:
Shinning points for this model SMD-90 Paper cup making machine
a.Advanced double barrel cam indexing
b.PLC colsed-loop control system
c.Automatic oil lubrication system
d.Cup inspection and intelligent control
e. Servo control for bottom feeding
f. Flameless hot air sealing
After Service:
1. The CD and service&support guide booklet will be sent with
machine to guide the installation process
works,adjust the whole machine,production,avoid or solve the
problem which the buyer will face.
2.Test run of the machine&training:
We will adjust the machine well for one week before the
deliverying,ensure the machine has the perfect
performace!
3.We can dispatch technologists to buyer’s factory,guiding
installation,adjustment for a period,the buyer
incharge of the salary, traffice fee,boarding and lodging,
communication.
4.Training of buyer in China:
We supply the free training of buyer,the training won’t stop until
the buyer control the whole lesson!The
cost of air ticket,boarding and lodging should provided by buyer
5.We supply the consumable spare parts for free for two years use
Our QC team:
A QC team with more than 20 professional and technical personnel.
To ensure 100% products checking.
Material: Strictly control of material using, meet international
requested standards.
Semi-finished products inspection: Product inspection before 100%
finished.
Production line test: With work team or data engineer who will
inspect machines and lines at fixed period.
Finished Product Inspection: Quality and property test before
products are packed and loaded.
