Small Coffee Paper Cup Making Machine For PE Coated Paper Manufacturing

Ask Lasest Price
Brand Name :	Shunda
Model Number :	SMD-90
Certification :	CE
Price :
Payment Terms :	T/T, Western Union, L/C
Supply Ability :	30 sets per mouth
Delivery Time :	25-35 days

Add to Cart

Product Details
Company Profile

Small Coffee Paper Cup Making Machine For PE Coated Paper Manufacturing

Main technical parameter

Model	SMD-90
Capacity	pcs/min	100-120	90-110	80-100
Size Range	mm(max)	Top diameter:90 Bottom Diameter:80 Height:140	Top diameter:110 Bottom Diameter:80 Height:170	Top diameter:125 Bottom Diameter:100 Height:170
Suitable Paper Thickness	gsm	135-450
Sealing Method		Ultrasonic and hot air system
Running Power	KW	10	11	12
Air compressor		0.4m²/Min. 0.5MPa	0.5m²/Min. 0.5MPa	0.6m²/Min. 0.5MPa
Net weight	Kgs	3400	3500	3600
Machine dimension	mm	250018001700	260018001800	270018001800
Collector Dimension	mm	9009001760	10009001860	11009001860

How to select my paper?

Mostly, cup manufacturers use PE coated paper for production. In recent years, PLA coated paper (bio-degradable) also used in certain market along with the rising of environmrntal awareness. Foe paper cup industrial, we suggest manufacturere to use minimum PE thickness single PE 18g/m2 or double PE 18/12 g/m2. According to the common sense of paper cup machinery( paper thickness is more important than base weight). Paper thickness tolerance of each size should be within +-0.02mm.

According to function

Generally speaking, cold cups need double PE coated paper and hot cups need single PE coated paper.

According to cup size

Normally, the bigger the cups volume, the thicker the paper should be. Such as 12oz-16oz cups need 0.31mm-0.41mm thickness paper according to purposes of use both thicker or thinner paper can be formed , but the holding feeling is different when using.

Machine video

https://www.youtube.com/watch?v=3vboPdSjjAo

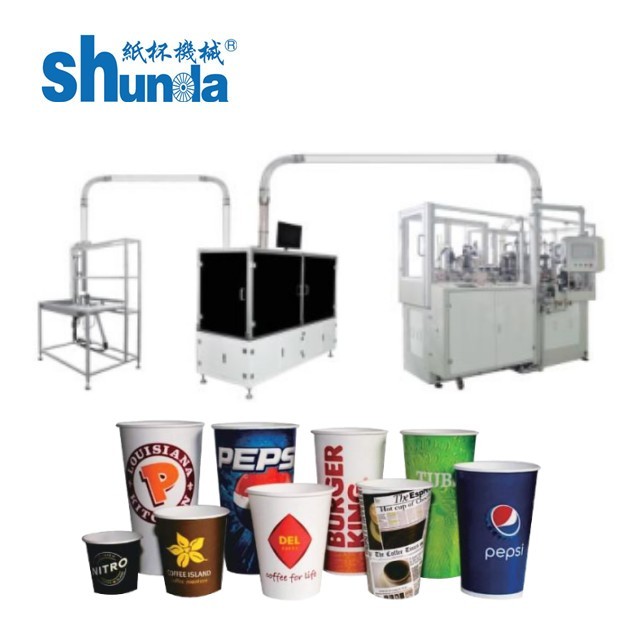

Whole production line of paper cup

Our advantage

--More than 26 years experience focus in paper cup/bowl/container machine

--Customers all over the world

--Certificate: CE certificate,ISO 9001

--Fast reply:7*24 quick response

--After sale service: We have a after sale department , service for your problems and dealing with spare parts.
