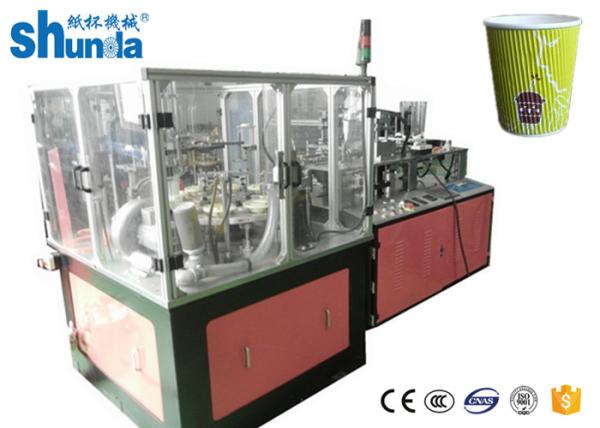

Ripple Double Wall Paper Cup Machine For Starbuck or Costa Cup
Speed 100 cups per minute
Technical Data:
| Model | SMD-80A cup size | SMD-80A bowl size |
| Speed | 80-100pcs/min | 70-90pcs/min |
| Cup size | Top diameter: 100mm(max) | Top diameter: 150mm(max) |
| Bottom diameter: 80mm(max) | Bottom diameter: 80mm(max) |
| Height: 110mm(max) | Height: 140mm(max) |
| Raw material | 135-450gsm paper | 135-450gsm paper |
| Configuration | Ultrasonic | Ultrasonic |
| Output | 9KW,380V/220V,60Hz/50Hz | 10KW,380V/220V,60Hz/50Hz |
| Air compressor | 0.4 M3/min 0.5MPA | 0.5 M3/min 0.5MPA |
| Net weight | 3.0 tons | 3.2 tons |
| Dimension of machine | 2500x1800x1700mm | 2700x1800x1800mm |
| Dimension of cup collector | 900x900x1760mm | 1000x900x1860mm |
- SMD-80A intelligent paper cup sleeve / jacket machine adopts
open-type, intermittent division design, gear drive, longitudinal
axis design, so they can reasonably distribute each part function.
- The whole machine adopts spray lubrication.
- PLC system controls the whole cups forming process.
- By adopting photoelectric failure-detecting system and servo
control feeding, our machine’s reliable performance is guaranteed,
thus offering a rapid and stable operation.
- The maximum speed can reach 100pcs/min, and it is suit for produce
8-44OZ cup jacket forming which is widely used in milk-tea
cup,coffee cup, ripple cups, noodle bowl and so on.
Advantages:
Finished products:
Production :
| Normal Running Speed | 90 pcs/min | 50 pcs/min | 40 pcs |
| 1 Day(12 Hours) | 90pcs*60min*12hours=64800 pcs | 50pcs*60min*12hours=36000 pcs | 28800pcs |
| 1 Week (5 Days) | 64800pcs*5days=324000pcs | 36000pcs*5days=180000pcs | 144000pcs |
| 1 Mouth(22 Days) | 64800pcs*22days=1425600pcs | 360000pcs*22days=792000pcs | 633600pcs |
About us:
Haining Chengda Paper Cup Machinery CO.,Ltd is established in year
1998,as Chinese earliest paper cup machine
manufacturer--design,research,manufacture,sell and serve , we have
developed, matured and specialized in machine types as below,
--Middle speed paper bowl machine SMD-80B 70-80cups/min
--Middle speed double wall paper cup machine SMD-80A 70-80cups/min
--High speed paper cup machine SMD-90 100-120cups/min
With decade years of technology accumulation,advanced manufacturing
skills and thoughtful after-sale services, Chengda(Shunda) Paper
Cup Machinery CO., Ltd has self-supported import and export right
and goes though CCC and CNAS certificates,also get CE and ISO9001
certified.
We have been supported hundreds of paper cup factories around the
globe,especially enjoy high reputation in USA,Finland,Algeria,etc.
We are always holding the faith of “quality wins market,honest wins
trust”.And in the future we should increase technology
creation,focus on improving manufacturing skills and lead trend of
paper cup machine industry.
FAQ:
1. Q: Is your company a factory or trading company?
A: Our company is a factory.
2. Q:Where is your factory located? How can I visit there?
A:Our factory is located in haining City, Zhejiang Province, China,
about 1.5 hours by car from Shanghai .All our clients, from home or
abroad, are warmly welcome to visit our company !
3. Q:How does your factory do regarding quality control?
A:We hold firm faith that quality comes first,and promise 3 YEARS
warranty.
Because our debuggers test and adjust every machine for 1 week
before packing and shipping out of workshop, no compromises on
quality.
After-sale Service:
1.warranty: 3 year
2.the guide booklet will be sent with machine to guide the
installation process works,adjust the whole machine, production,
avoide or solve the problem which the buyer will face.
3.we will adjust the machine well for one week before the
delivery,ensure the machine has the perfect performance.
4.we can dispatch technologists to buyer's factory,guiding
installation,ajustment for a period, the buyer incharge of the
salary, traffic fee, boarding and lodging,communication and each
day 100usd living allowances.
5.we supply the free training of buyer,the training won't stop
until the buyer control the whole lesson!
6.we supply the consumable spare parts for frees for three year
use.
