Black Ultrasonic Hot Air Paper Tea Cup Making Machine / Production
Machine 90-120 Pcs / Min
| Model | SMD-90 |
| Speed | 100-120 pcs/min |
| Cup size | Top Diameter: 60mm(min)-115mm(max) Bottom Diameter: 40mm(min)-85mm(max) Height: 50mm(min)-180mm(max) |
| Raw material | 135-450GRAM |
| Configuration | ULTRASONIC&HOT AIR |
| Output | 12KW,380V/220V,60HZ/50HZ |
| Air compressor | 0.4 M³/Min 0.5MPA |
| Net weight | 3.4 TONS |
| Dimension of machine | 2500×1800 ×1700 MM |
| Dimension of cup collector | 900 ×900 ×1760 MM |
Description:
SMD-90 is a paper cup machine,which is designed by HAINING CHENGDA
MACHINERY
CO.,LTD,It can produce both single and double PE coated paper
cups(hot drink and cold drink ). As technology development, it will
take place of the formally machines in market day by day.
Specifications:
MODEL | SMD-90 |
SPEED | 90PCS/MIN |
MATERIAL | 135-450GRAM |
CONFIGURATION | ULTRASONIC&HOT AIR |
OUTPUT | 380V/220V,60HZ |
AIR COMPRESSOR | 0.5 M³/Min |
NET WEIGHT | 4.5 TONS |
MACHINE SIZE | 2500 ×1800 ×1700 MM |
COUNTER SIZE | 900 ×900 ×1760 MM |
Advantage:
1. Hi-tech Cylindrical indexing gear 2.Switzerland Hot air sealing
device
3. Mitsubishi PLC tracking and Touch screen Controlling cabinet
4. Servo-driven bottom-web feed with infinitely variable
setting(Brand:Taiwan DONGYUAN) 5.Automatic lubrication system
6. Infinitely variable drive
7. Safety Door opening protection device 8.Photoelectric tracking
and detecting every step
9. Automatic collecting and counting cups

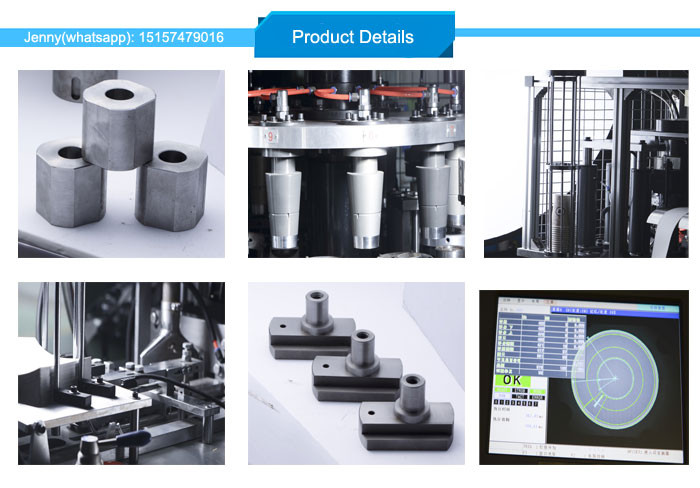

Machine Details:
After Service:
1 The CD and service&support guide booklet will be sent with
machine to guide the installation process works,adjust the whole
machine,production,avoid or solve the problem which the buyer will
face.
2. Test run of the machine&training:
We will adjust the machine well for one week before the
deliverying,ensure the machine has the perfect performace!
3. We can dispatch technologists to buyer’s factory,guiding
installation,adjustment for a period,the buyer incharge of the
salary, traffice fee,boarding and lodging, communication.
4.Training of buyer in China:
We supply the free training of buyer,the training won’t stop until
the buyer control the whole lesson!The cost of air ticket,boarding
and lodging should provided by buyer
5. We supply the consumable spare parts for free
FAQ:
1. Q: Is your company a factory or trading company?
A: Our company is a factory.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in haining City, Zhejiang Province,
China, about 1.5 hours by car from Shanghai .All our clients, from
home or abroad, are warmly welcome to visit our company !
3. Q: How does your factory do regarding quality control?
A: Quality is priority. Shunda people always attach great
importance to quality controlling from the very beginning to the
very end: 1). All raw material we used are environmental-friendly;
2). Skilful workers care every details in handling the producing
and packing processes; 3). Quality Control Department specially
responsible for quality checking in each process.
